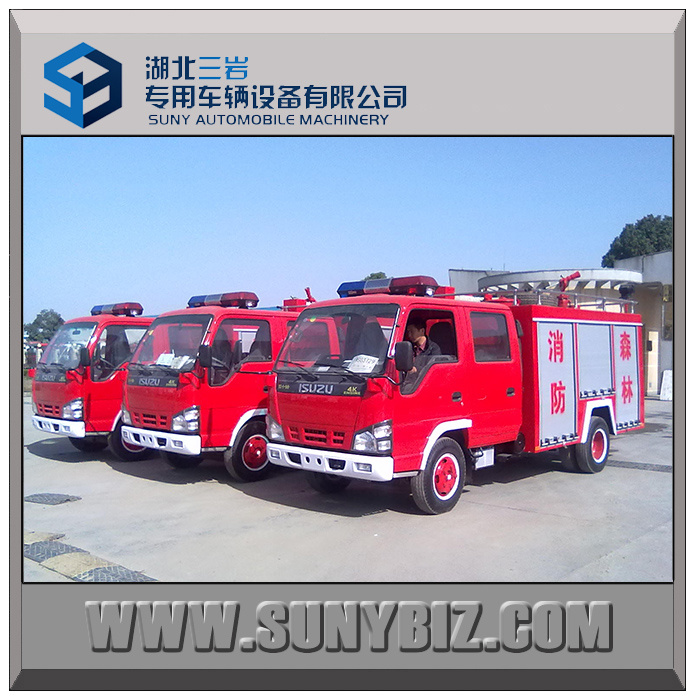

A.water fire truck, water and foam fire truck
B. water and foam far range 30-40M
C. pump flux 20-30L/s
D. more fire truck for optional.

1. fire truck Main equipped:
1.1.fire truck chassis constitute cab, engine, gear box, steering wheel,beam,tyre,axles,etc.
1.2.Fire truck upper body with water/foam tank, fire pump,fire monitor,pipe,etc.
1.3.fire truck with Water fire fighting tank and foam fire fighting tank .or water fire fighting tank.
1.4.fire truck with fire pump is normal pressure or middle-low pressure, made in China or imported.
1.5.fire truck with fire monitor is controlled by Manual or Electric.

2. Fire truck main technical specifications:

Main Parameter	Chassis brand	ISUZU
	Driving type	4X2
	Cab	600P ISUZU, A/C, four doors,6 seats, Left hand drive
	Overall dimension	About mm
Engine	Model	4KH1-TCG40
	Power	88kw/120hp
	Displacement	2999ml
	Manufacturer	ISUZU
	Fuel Type	Diesel
	Emission standard	Europe IV
Tire	Number of Tires	6
	Tire Size	7.00-16
Gear box	Type	Manual 5-speed
	Model	ISUZU MSB
Axle	Number of Axles	2
	Wheelbase	2490-3815mm
	Rear axle	2.5T
	Front axle	4.8T
Special function
Tank	Structure	Welding, there is clapboard inner.
	Material	Water Tank	High quality carbon steel plate, anti-rust treatment
		Foam tank	Stainless steel plate
	Capacity	Total	1000-3000L
		Water Tank	1000-3000L
		Foam tank	-
Special Parts Parameter	Fire Pump	Type	Normal pressure fire pump
		Model	CB10/20
		Flux	20L/S
		Pressure	1.0Mpa
	Fire Monitor	Type	For water and foam
		Model	PS20
		Flux	20L/S
		Pressure	1.0Mpa
PTO	Use sandwich PTO, splashing-type lubricate, can put out fire when driving.
Carriage	Carriage is made of high quality steel and Aluminum embossed sheet
Pump room	or on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch.
Equipment box	Equipment box: at the back of carriage, there are two-layers clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. Structure: whole frame is welded to ensure intension and rigidity. Material: frame is high quality steel, inner plague is aluminum embossed sheet,surface is anodic processed.
Rolling shutter door	Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock.
color	The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck.
Technical requirement	1.Fire fighting vehicle is accord with GB7965 Performance requirements and test methods for fire fighting vehicle. 2.tank of foam and water is accord with GB39.5 General Specification for fire fighting vehicle. 3.the outside is very beauty, the surface roughness is accord with GB39.5 General Specification for fire fighting vehicle. 4.All operating switch and meter is accord with standard nameplate.

3. Our more fire truck:
---fire turck tank capacity : 2000L- 25000L
---fire truck tank material: carbon steel, stainless steel, PE.

4. Our Product Series:
1. Fuel tank truck/trailer/semi-trailer/container.
2. Water tank truck/trailer/semi-trailer/container.
3. Chemical tank truck/trailer/semi-trailer/container.
4. Bitumen tank truck/trailer/semi-trailer/container.
5. Bulk powder tank truck/trailer/semi-trailer/container.
6. Gas tank truck/trailer/semi-trailer/container.
7. Dump truck/trailer/semi-trailer
8. Truck mounted crane
9. Fecal suction truck.
10. Sewage suction vacuum tank truck.
11. High pressure washing truck.
12. Sewage suction vacuum tank and high pressure washing truck.
13. (vacuum)Sweeper truck.
14. Garbage truck(swing arm type,sealed dump type,compression type,hanging barrel type,docking type)
15. Concrete mixer truck
16. Fire truck
17. Wrecker
18. Refrigerator truck/trailer/semi-trailer
19. Platform transported truck/trailer/semi-trailer
20. Van truck/trailer/semi-trailer
21. High-altitude operation truck

5.Our Product Series more drive type:
Left hand drive ( LHD ) / Right hand drive ( RHD )
4x2 ~ 4x4 ~ 6x2 ~ 6x4 ~ 6x6 ~ 8x4 ~ 8X8

6.Our Product Series more chassis brand:
Emission standard: Euro 1 , Euro 2 , Euro 3 , Euro 4 , Euro 5
DONGFENG --- DFAC / 153 / Kingrun / Kingland
SINOTRUK --- HOWO /HOWO-7 / Style / T7H / T5H / T5G / Golden prince / Sitaier King / Huanghe commander / Wangpai / etc
SHACMAN --- F2000 / F3000/ M3000 / Aolong
FOTON---Auman / Forland / Foton
FAW---J5 / J6
Beiben,JAC,IVECO,JMC,YUJIN,HINO,UD,ISUZU etc.


7.Packaging & Shipping
Truck is nude packing, shipping by container, bulk cargo, ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!

8. Products service
1.We supply sincerity, efficient, professional, happiness service on pre-sale, in the sale, after-sale
2.Any requiry will be replied within 24 hours.
3.High quality ,competitive&reasonable price, fast lead time.
4.Our products are direct from factory,there is no middle man,no high markup,so we can provide quality items yet very competitive price.
5.We guarantee that all our goods has gone through strict quality control and testing to ensure that it is in good condition before ship out.We strive for 100% customer satisfaction on every sale we complete.
6.Fast delivery time: within about 10~~20 working days.
7.We provide 13 months warranty.
8.We supply quick-wear parts and spare parts in time for customer .

9.Why choose us?
--Factory
We have own factory and skilled worker, rich-experienced design team and responsible QC and good after sales service.
--Quality and Price
We are stricktly control quality from raw material to finished products. And ensure high quality of your required products. Also we manage to control the cost to save every penny for your party.
--Amount
We can provide various kinds of special truck and trailer, various machinery for your choices. Also, we can customize per your specific requirements.
--Your Model
Our design team can design per your specific text description and reference design.
--Of the Public Accounts
All the payment will be received by our company bank account. Also all the transaction by monitored by union pay.
--Convenient Transportation
We coopertated with efficient logistics. Which ensure the goods can be reached you timely. And win much more time for your party.
--Choose
All the discussion and terms will be showed in our contract. Which ensure your interests legally. Also welcome to visit us at any tim.
--Pre-consultation
Please contact us before you place order, or need any technical support or guildance.
--Specialty
We have careful sales and merchandiser, own factory and long term cooperated logistics, and after-sales worker.
--Commissioner
We have patient and efficient pre-sales worker, and considerate after-sales workers, who do best for your part.
--All The Time
We are standing by 24 hours. Including public holidays.


10.Contract
And more customize products.All more detailed specification and pictures for trucks, please kindly contact with

Freda Wang
Cell : 0086 13886883411
We warmly welcome you to our factory for inspection.
We also produce other different kinds of special automobile.
